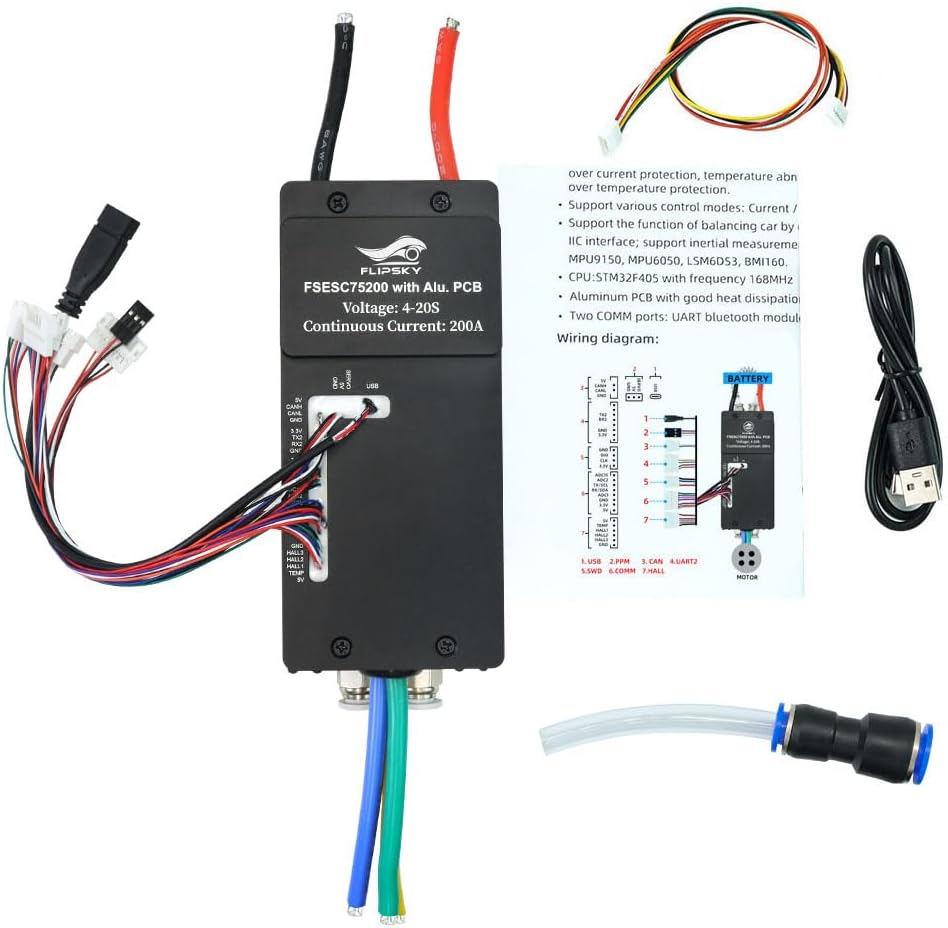

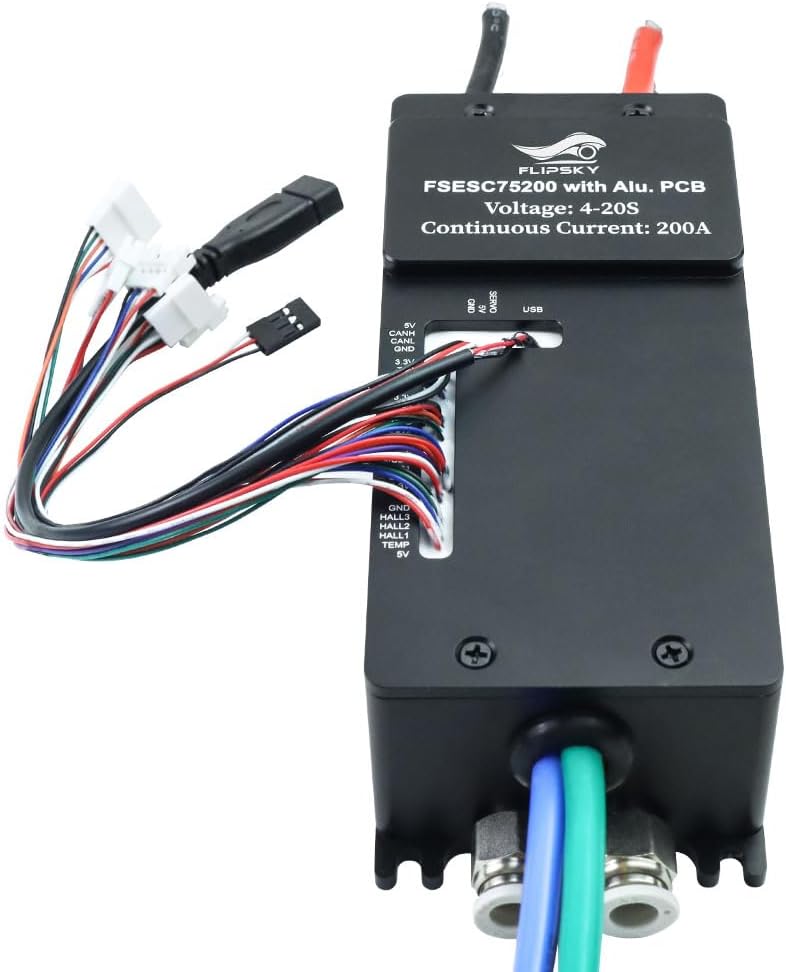

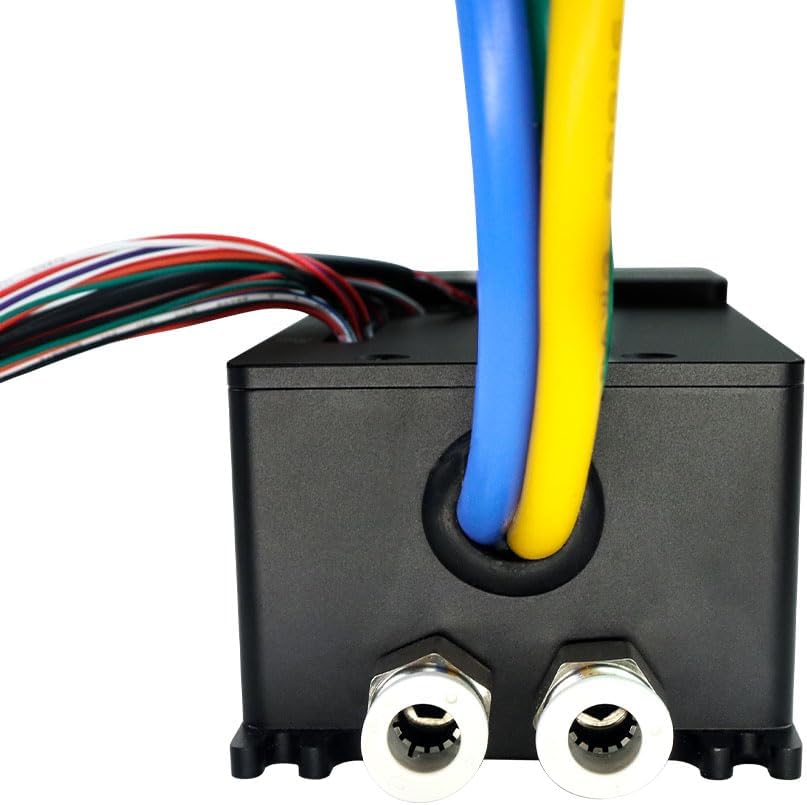

FLIPSKY 75200 FOC 84V High Current Single ESC with Water Cooling Enclosure for Electric Skateboard/Scooter/Ebike Speed Controller
Product details
| Management number | 214454902 | Release Date | 2026/04/12 | List Price | US$80.00 | Model Number | 214454902 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specs:Firmware: 5.2, supports firmware upgradeVoltage: 14-84V (safe for 4-20S)Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300ABEC: 5V@1ASupport Modes: DC, BLDC, FOC (sinusoidal)ERPM: 150000Communication Ports: USB, CAN, UART, SPI, IICSupported Sensors: ABI, HALL, AS5047, AS5048AInput Source Support: PPM, ADC, NRF, UARTSupported Sensorless: YesRegenerative capacity: YesProgrammable via VESC_TOOL: Yes75200 Size:130x67.7x40.1mm(Including alu. case)Motor/power wire size: 8 AWGFeatures:1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.2.Support various control modes: Current / Duty cycle / Speed / PID control modes.3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.4.CPU:32F405 with frequency 168MHz5.Aluminum PCB with good heat dissipation to expand life span.6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.
- ▶Use aluminum alloy case for better heat dissipation effect,which makes ESC more durable.
- ▶Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
- ▶Voltage: 14-84V (safe for 4-20S).Support various control modes: Current / Duty cycle / Speed / PID control modes.
- ▶Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART
- ▶Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
| Size | 130x67.7x40.1mm(Including alu. case) |
|---|---|
| Color | Black |
| Style | Electric Skateboard/Scooter/Ebike Speed Controller |
| Material | Aluminum |
| Brand Name | FLIPSKY |
| Model Name | 75200 84V water cooling esc |
| Item Weight | 1.23 Kilograms |
| Manufacturer | Flipsky |
| Package Weight | 1.23 Kilograms |
| Suggested Users | unisex-adult |
| Warranty Description | 2m |
| Item Package Dimensions L x W x H | 11.77 x 6.06 x 4.8 inches |
